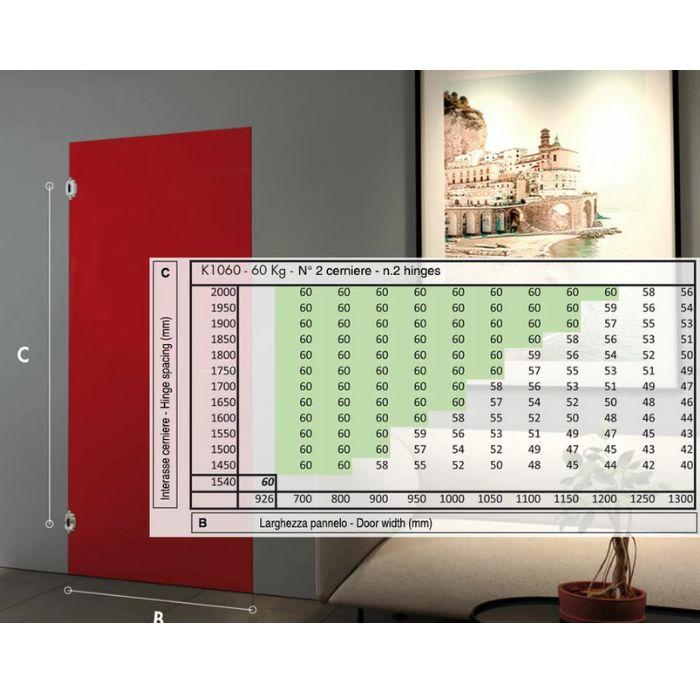

A concealed hinge made of highly resistant steel for flush doors with wooden, steel and aluminium frames. Load capapcity up to 60kg, 180 opening angle with the minimum door thickness of 32mm. Wear-resistant bushings, lubrications/maintenance not required, reseversible for the right and left handle doors.
Adjustments: horizontal +3,0/-1,5mm, vertical +/-2,5mm, Planar +/- 1,0mm
INTERCHANGEABLE WITH: K1019
| Weight, kg | 0.282000 |
|---|---|
| Country of origin | Italy |
| Model Name | K1060 |
| Brand | KRONA KOBLENZ |
| Material | Zamak, Steel |
| Hinge type | Concealed hinges |
| Door material | Wooden doors |
| Fire-resistance | Not suitable for fire-resistant doors |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 110 x 60 x 30 |
