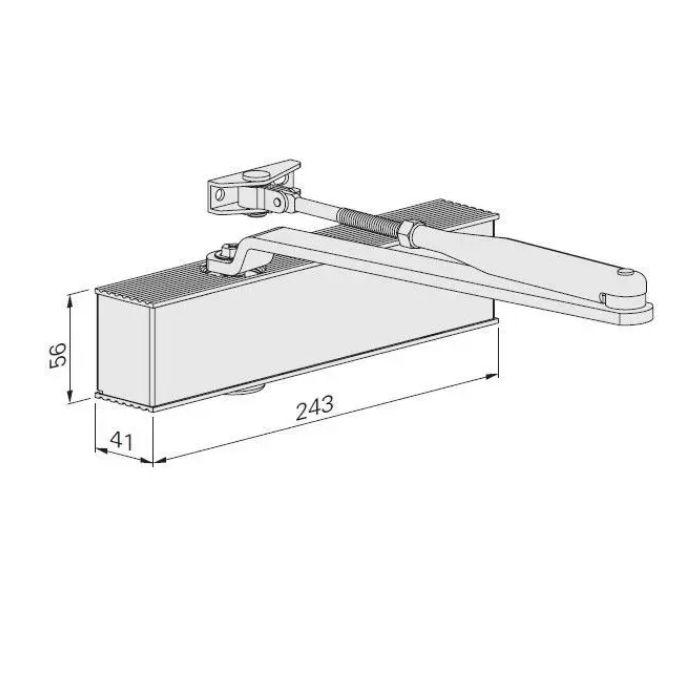

ECO Newton TS-20
Closing force size 2/3/5, tested acc. to EN 1154 (for door widths up to 1,250 mm). Adjustable by moving the door closer. Latching speed and closing speed freely adjustable at the side.
Constant back-check.
Same model for DIN L/R.
Max. door opening angle: 180 °

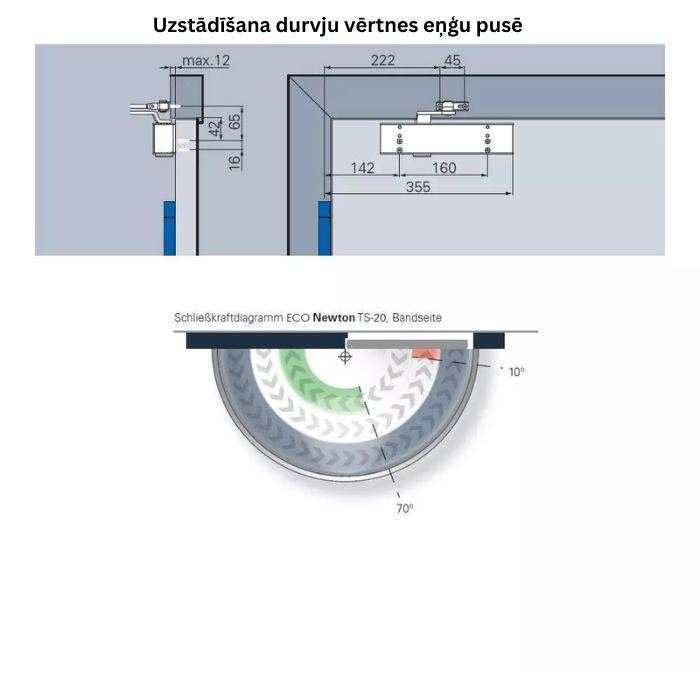

Pull side: Standard installation on the door leaf.

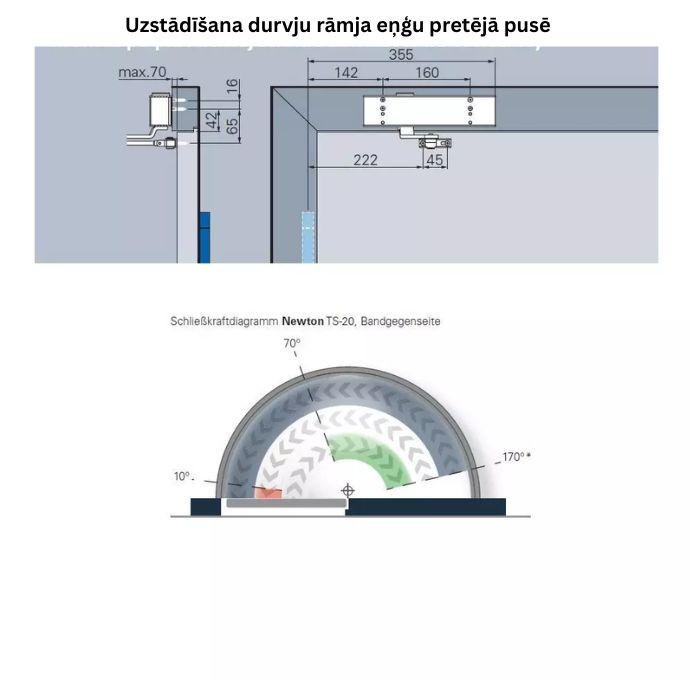

Push side: Frame installation on the door frame.
New overall packaging:
ECO TS-20: Complete set incl. door closer body, arm, incl. mounting plate, mounting instructions, paper template and fixing accessories.
| Weight, kg | 2.200000 |
|---|---|
| Country of origin | Germany |
| Model Name | TS20 |
| Material | Stainless Steel |
| Brand | ECO SCHULTE |
| Closer type | Overhead door closers |
| Fire-resistance | Suitable for fire-resistance doors |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 250 x 45 x 60 |
