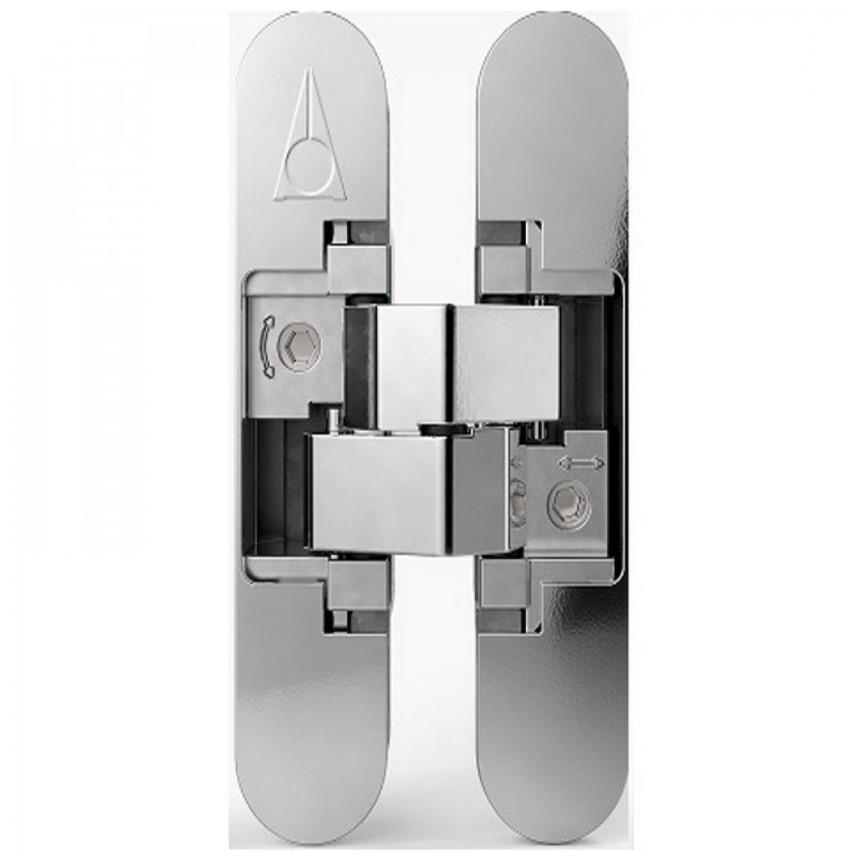

Hidden hinges for non-rebated interior doors.
Universal hinge made of ZAMAK alloy , maximum load 40 kg/pc.

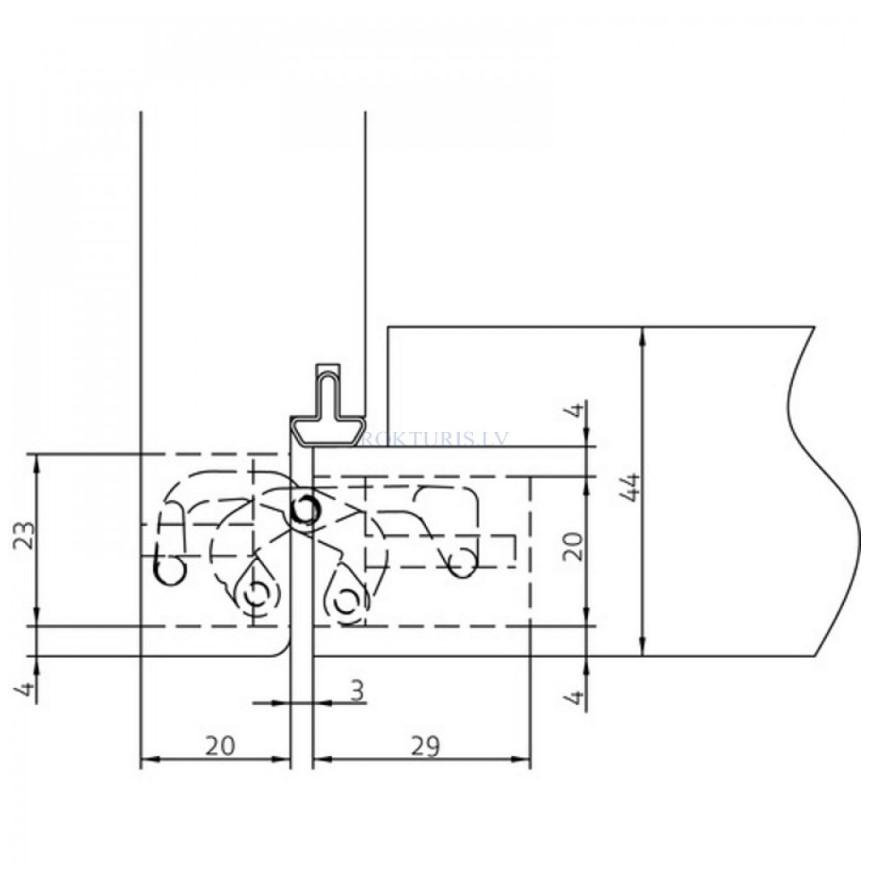

Opening angle 180°. Minimal door leaf thickness 28 mm.

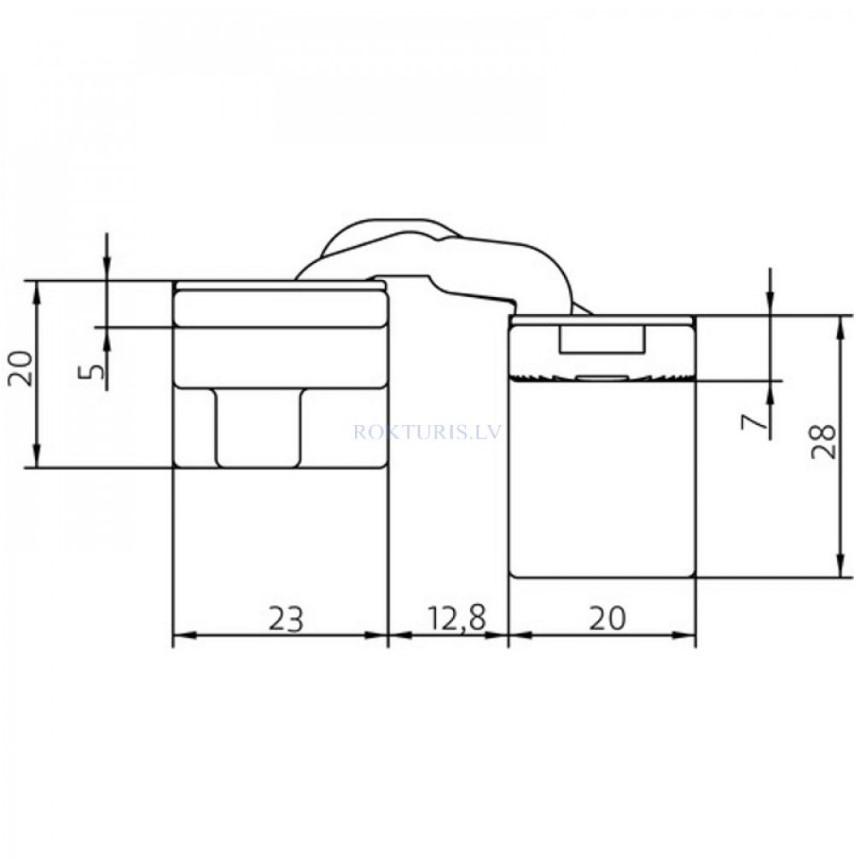

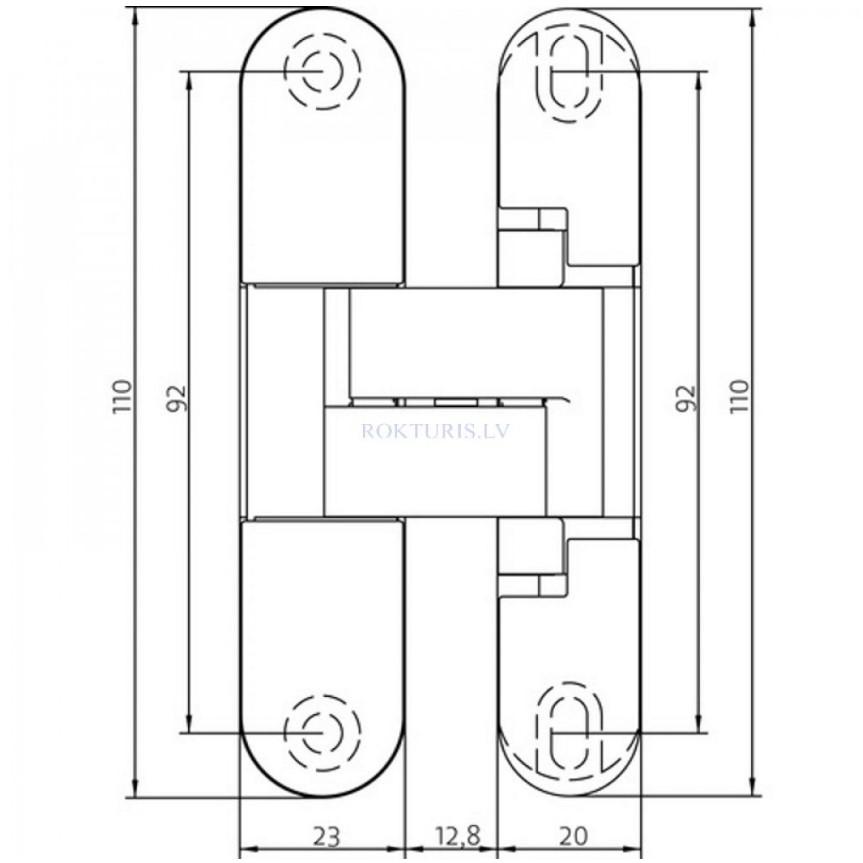

Hinge height 110 mm, width 23 mm on the sash side, 20 mm on the frame side.
The hinges are adjustable in three dimensions (independently of each other).
Adjustment: vertical +/- 2.5 mm; horizontally +/- 1,5 mm; to a depth of +/- 1 mm.
| Weight, kg | 0.300000 |
|---|---|
| Country of origin | Italy |
| Model Name | AN 150 3D 28 |
| Hinge grade - EN1935 | Not certified |
| Brand | ANSELMI SIMONSWERK GROUP |
| Material | Zamak |
| Hinge type | Concealed hinges |
| Door material | Wooden doors |
| Door weight | 40 KG |
| Fire-resistance | Not suitable for fire-resistant doors |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 110 x 56 x 40 |
