Hidden hinges for non-rebated interior doors.
Universal hinge made of ZAMAK alloy , maximum load 20 kg/pc.
Opening angle 180°. Minimal door leaf thickness 40 mm.

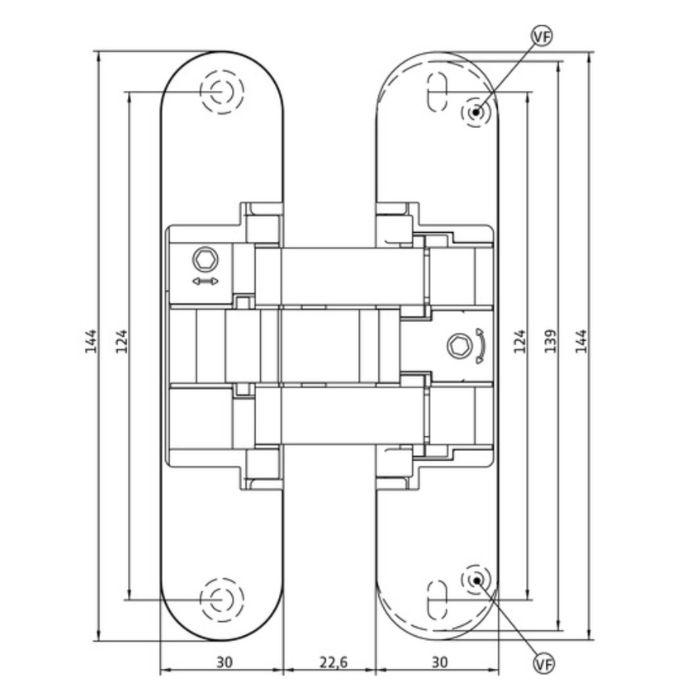

Hinge height 144 mm, width 30 mm.
The hinges are adjustable in three dimensions (independently of each other).
Adjustment: vertical +/- 2.5 mm; horizontally +/- 1 mm; to a depth of +/- 1 mm.
| Weight, kg | 0.300000 |
|---|---|
| Country of origin | Italy |
| Model Name | AN 141 3D FVZ 14/40 (515) |
| Brand | Anselmi |
| Material | Zamak |
| Hinge type | Concealed hinges |
| Quantity | 1 |
| Manufacturer warranty | 24 months |
