Sliding door system Terno Scorrevoli TG / AU

Add to Wish List
As low as €103.00
In stock
Only %1 left
SKU
TG-AU

The TG / AU sliding door system is designed for sliding wooden interior doors.

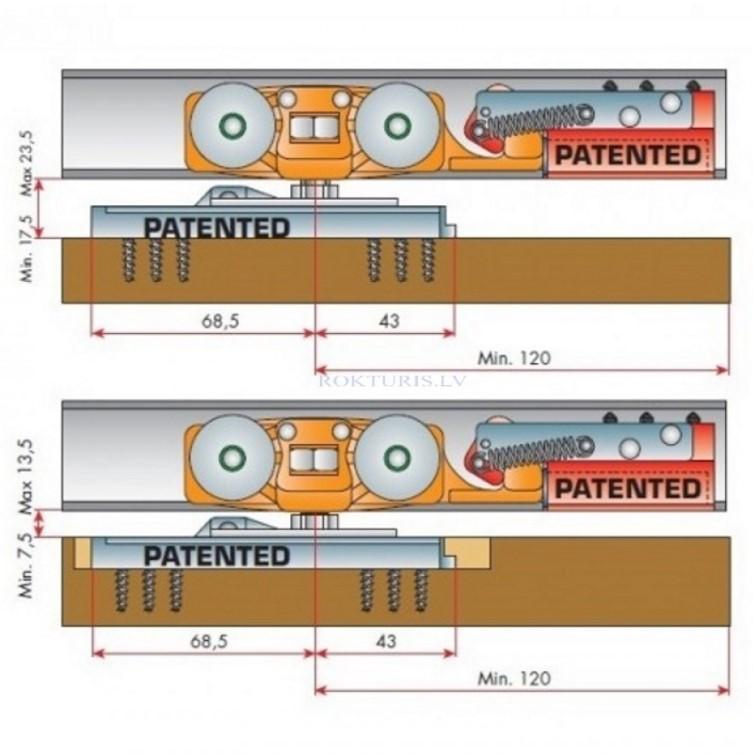

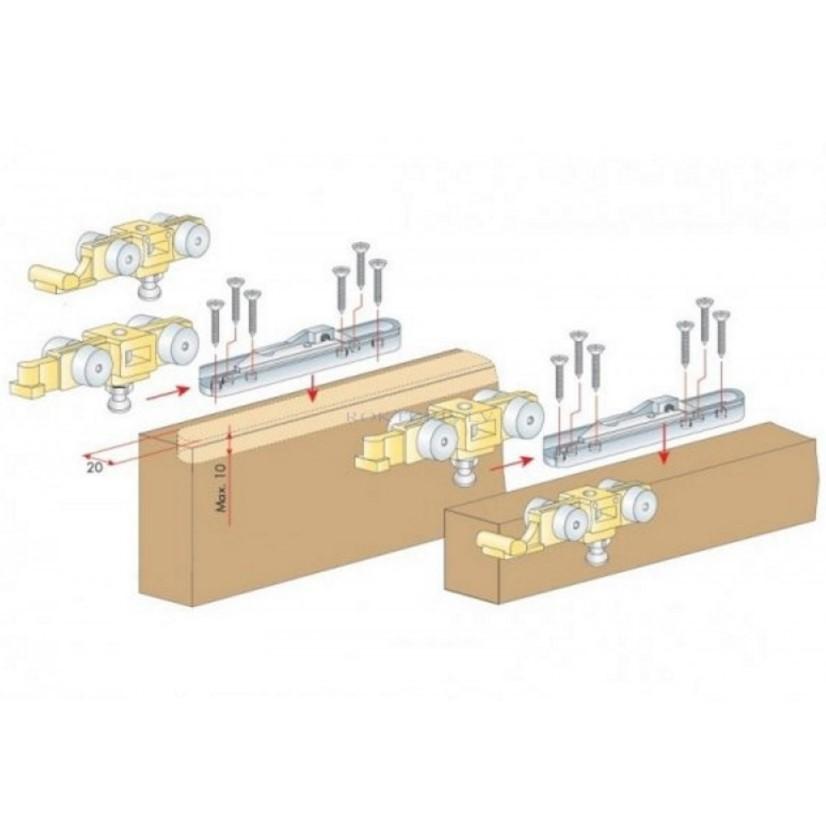

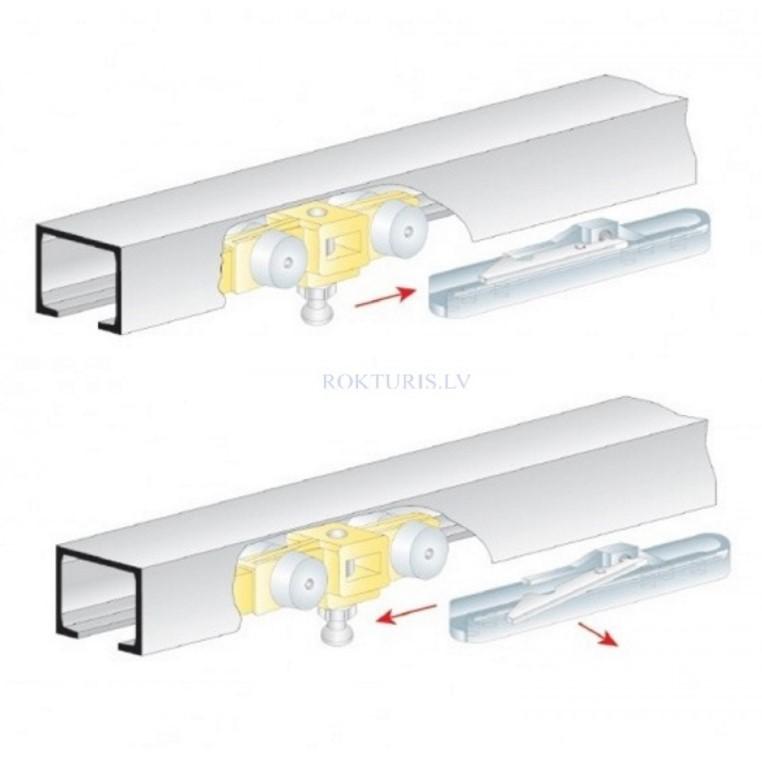

This system has an extremely simple sash attachment - thanks to the patented “clip-ok” type attachment, the wheel bolt is simply inserted into the plates and does not require tightening with a wrench. Automatic plates can be recessed into the sash, reducing the gap between the sash and the rail to 7.5mm.

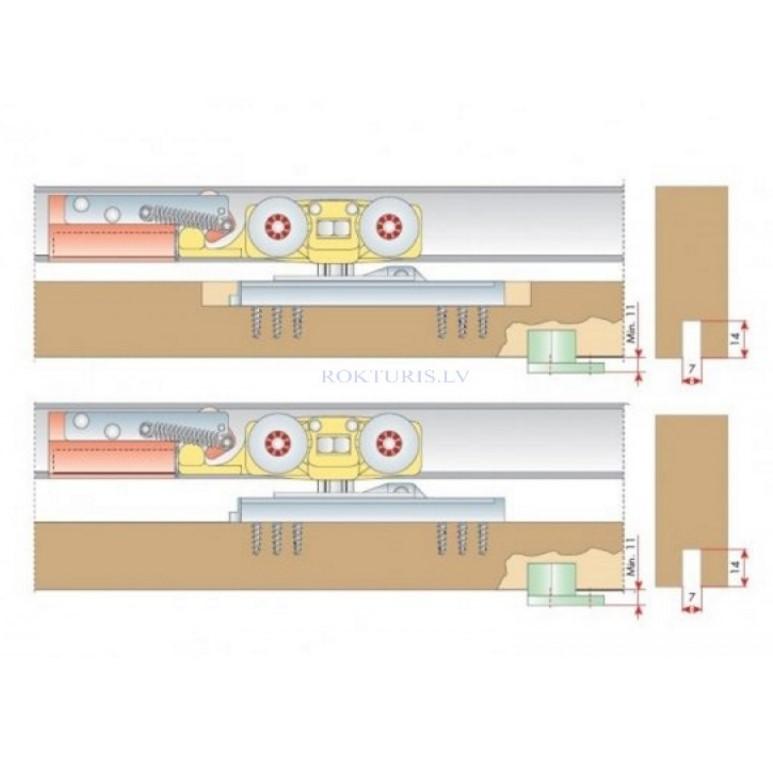

The highest level of comfort is provided by 2 units. sash brakes with SOFT CLOSE function. This function protects the sash from knocking, gently and quietly pulls the sash to the final open or closed position (shock absorber pulls the sash to the final position ~ 3cm).

Silent and long-lasting sash rolling is ensured by an aluminum rail, bearing wheels coated with a material resistant to abrasion and wear, and hardened steel wheel axles.

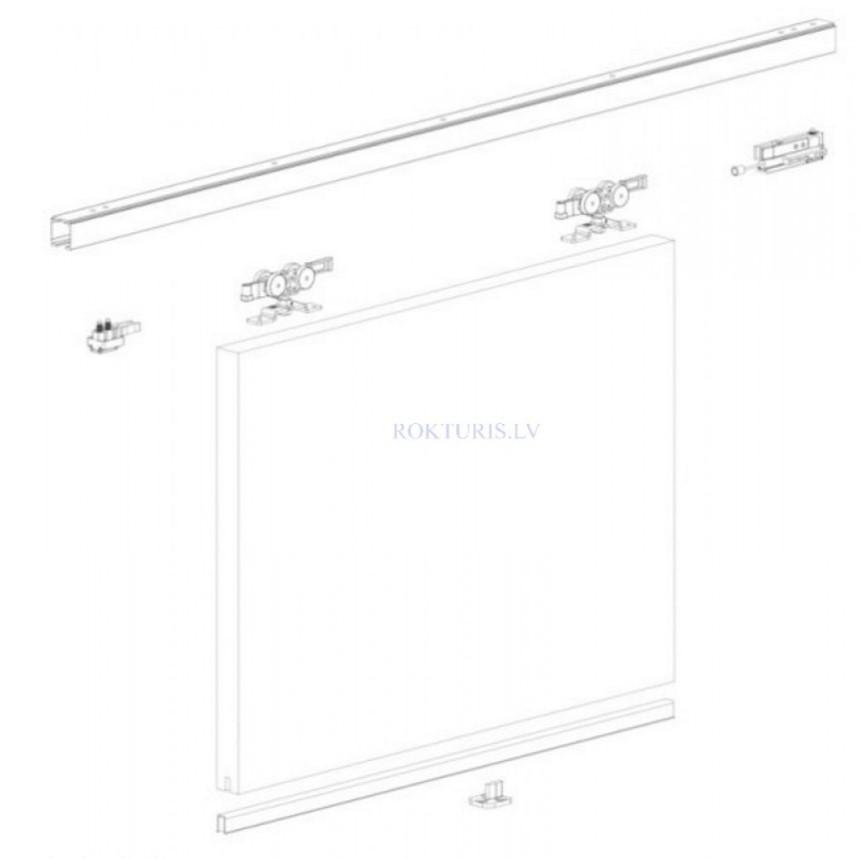

The system set includes:

Sash wheels;
Sash holder;
Guide;
Rail 2 m or 3 m;
Automatic hooks;
Two "soft close" brakes - shock absorbers - in the closed and open positions will prevent knocking on the door, as well as protect your fingers from injury.
Our tip: The rail should be at least twice the width of the sash.

More Information
Weight, kg 5.000000
Country of origin Italy
Model Name TG / AU
Door material Wooden doors
Mode of operation Manual system
Mounting type To ceiling
Brand Terno Scorrevoli
Quantity 1
Manufacturer warranty 24 months
Package sizes, mm 1400 x 100 x 100
