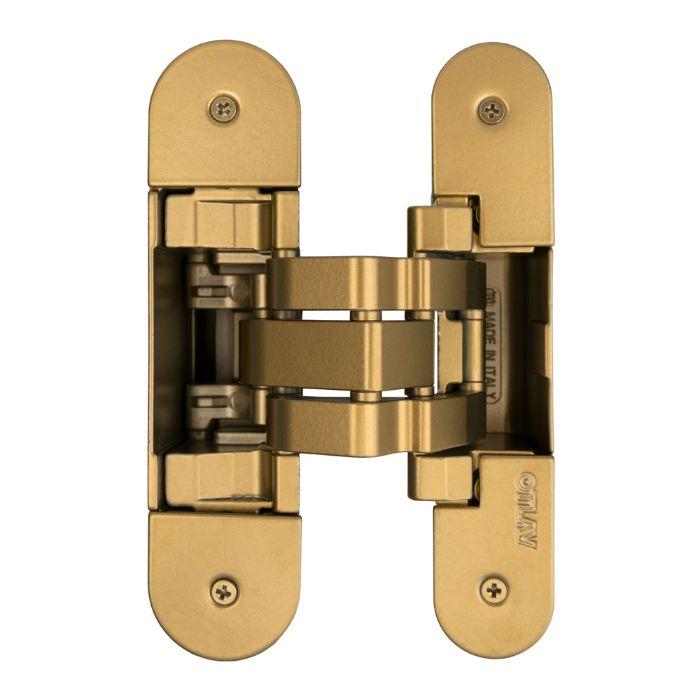

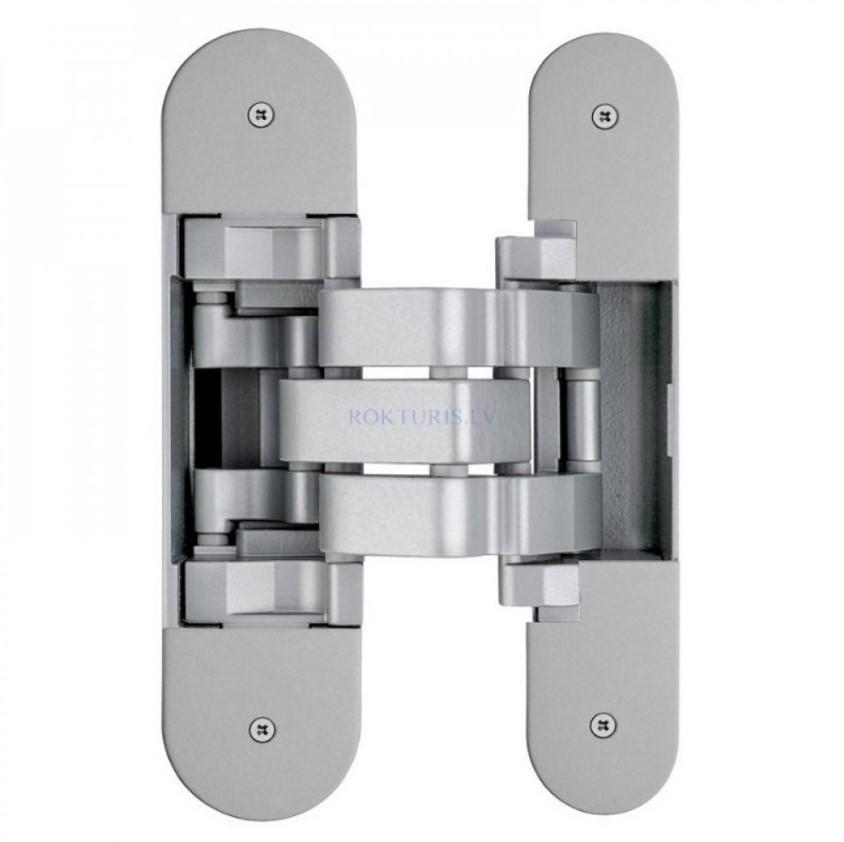

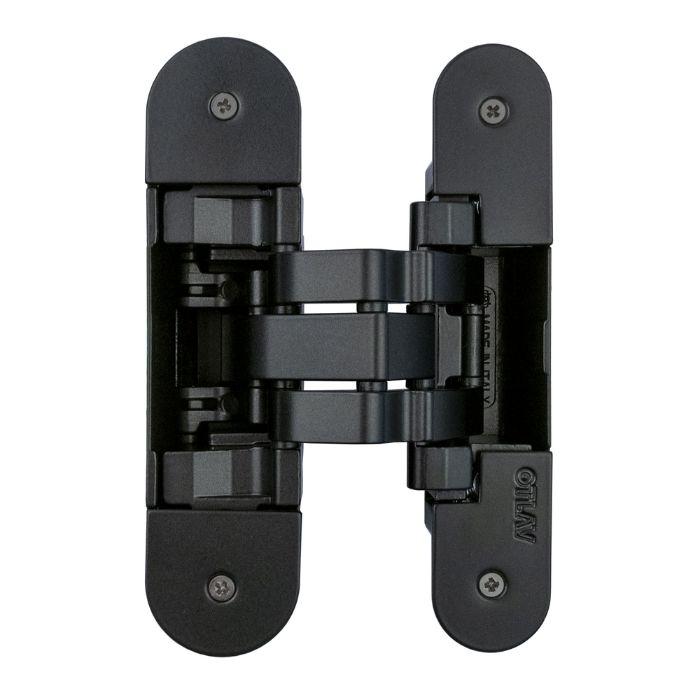

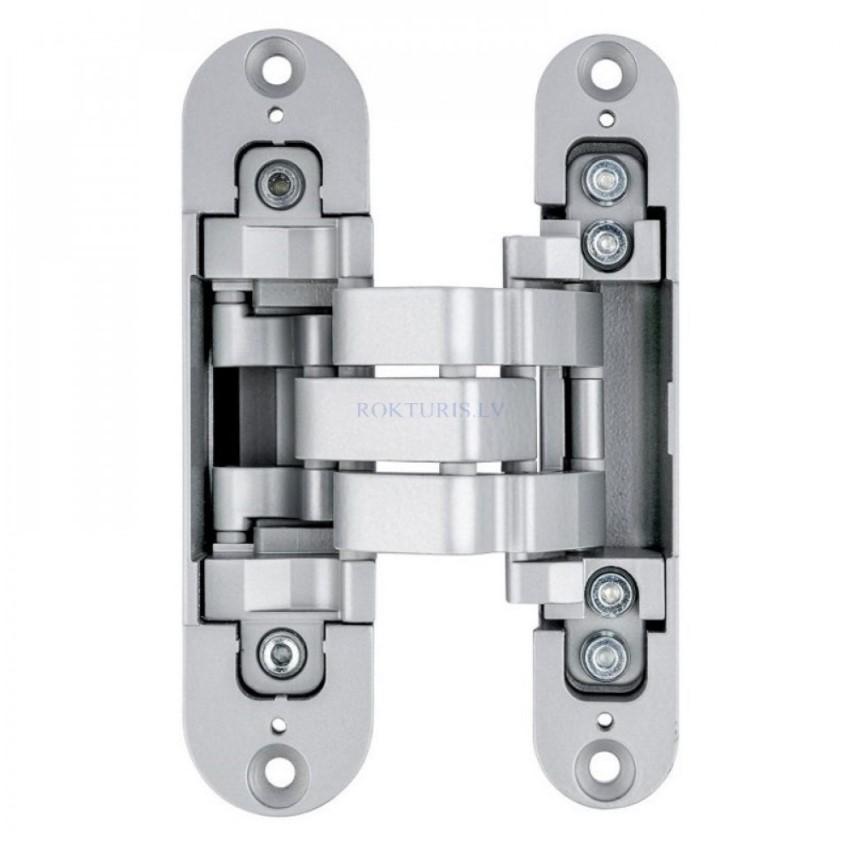

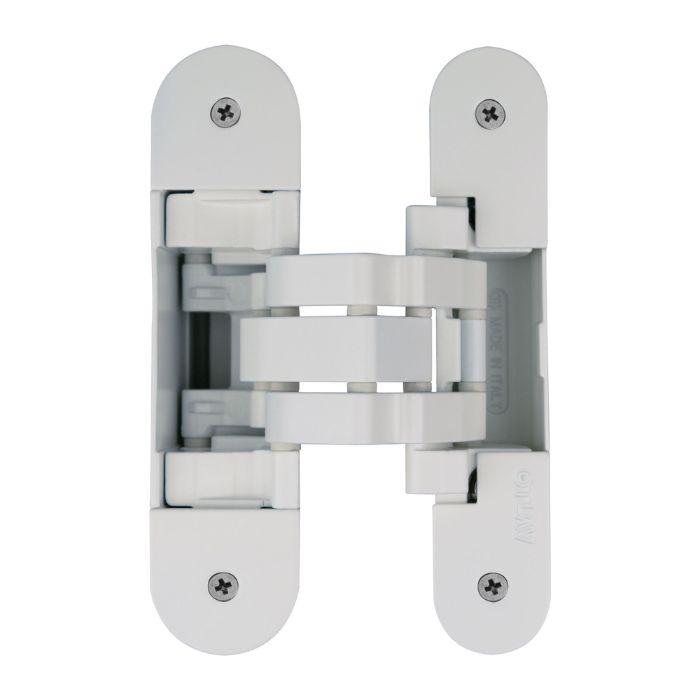

Concealed hinges Otlav IN570

Add to Wish List
As low as €36.00
In stock
Only %1 left
SKU
Otlav IN570

Hidden hinges for non-rebated interior doors.

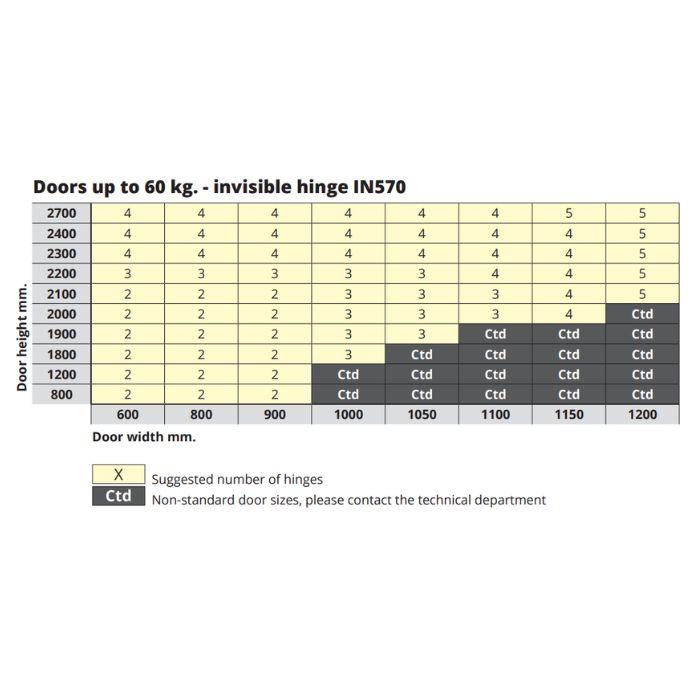

Universal hinge made of ZAMAK alloy , maximum load 60 kg/ 2 pc.

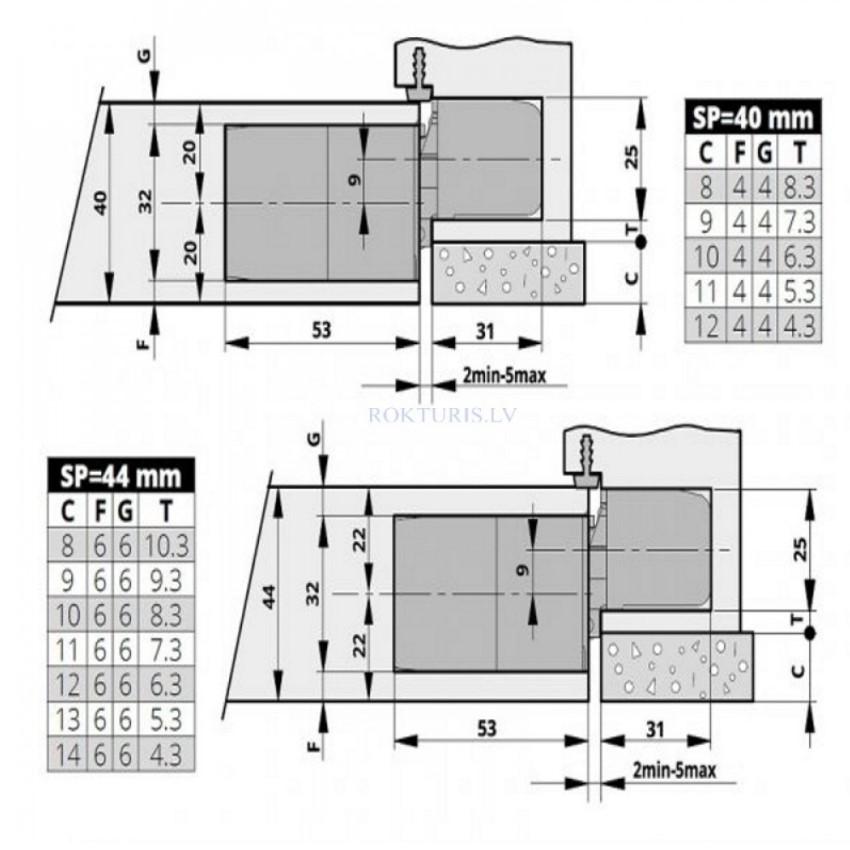

Minimal door leaf thickness 40 mm.

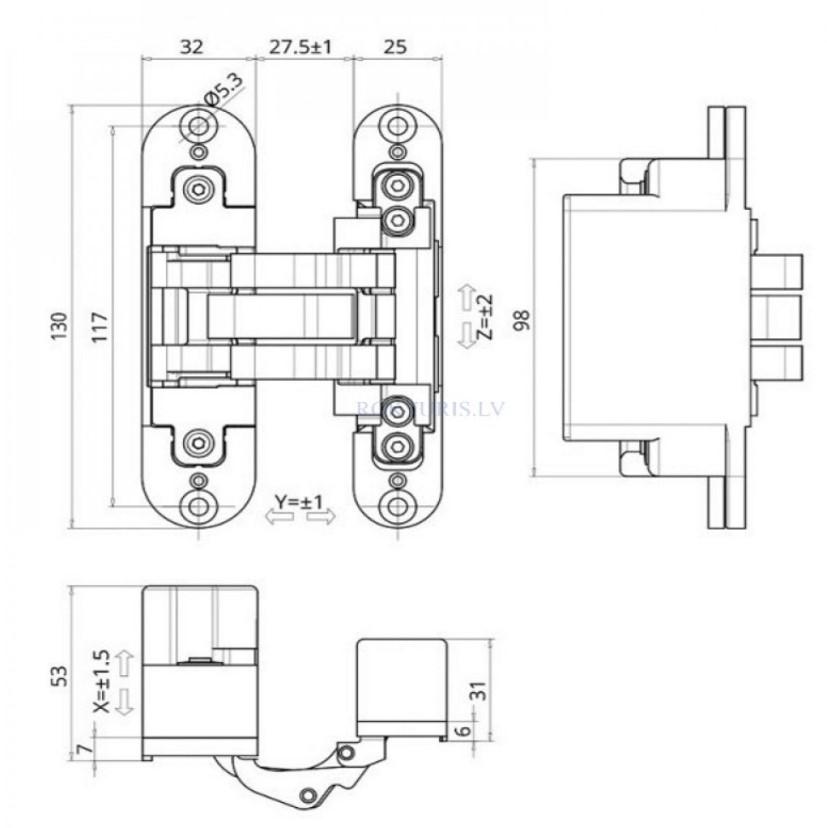

Hinge height 120 mm, width 30 mm.

The hinges are adjustable in three dimensions (independently of each other).

Adjustment: vertical +/- 2 mm; horizontally +/- 2 mm; to a depth of +/- 1 mm.

Suitable for fire doors. Certified for 200,000 opening cycles.

More Information
Weight, kg 0.400000
Country of origin Italy
Model Name IN570
Material Zamak
Hinge type Concealed hinges
Door material Wooden doors
Quantity 1
Manufacturer warranty 24 months
