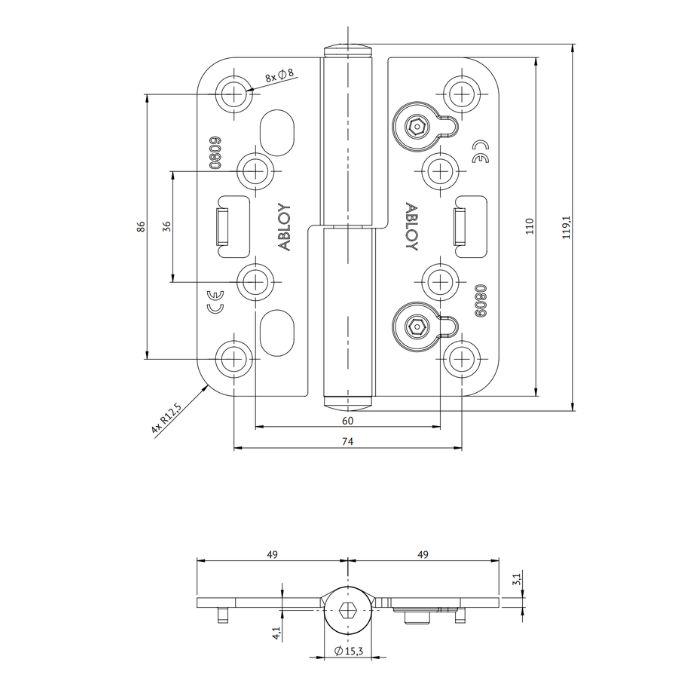

Size: 110/98 mm
Max load: 120 kg (4 hinges)
Finishing: lacquered zinc, black, white

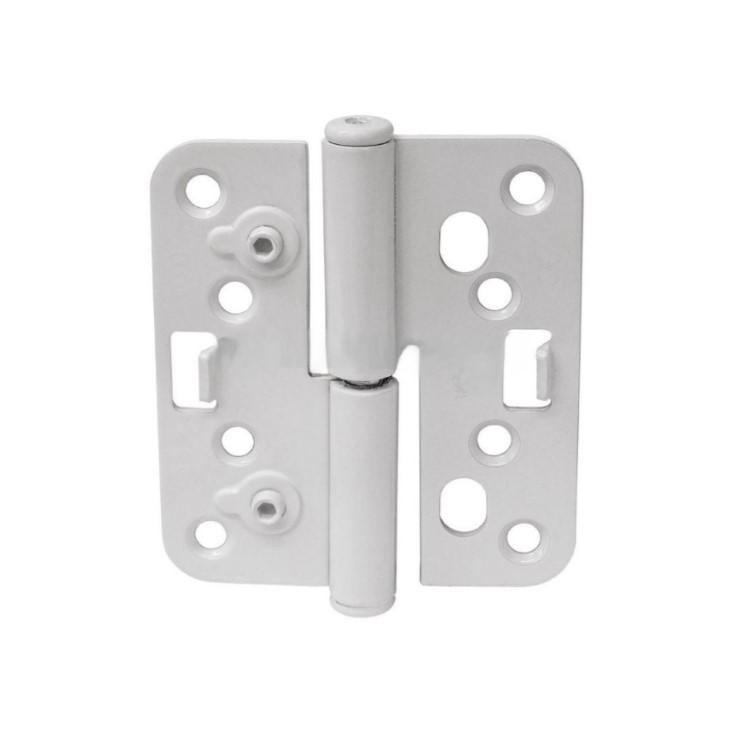

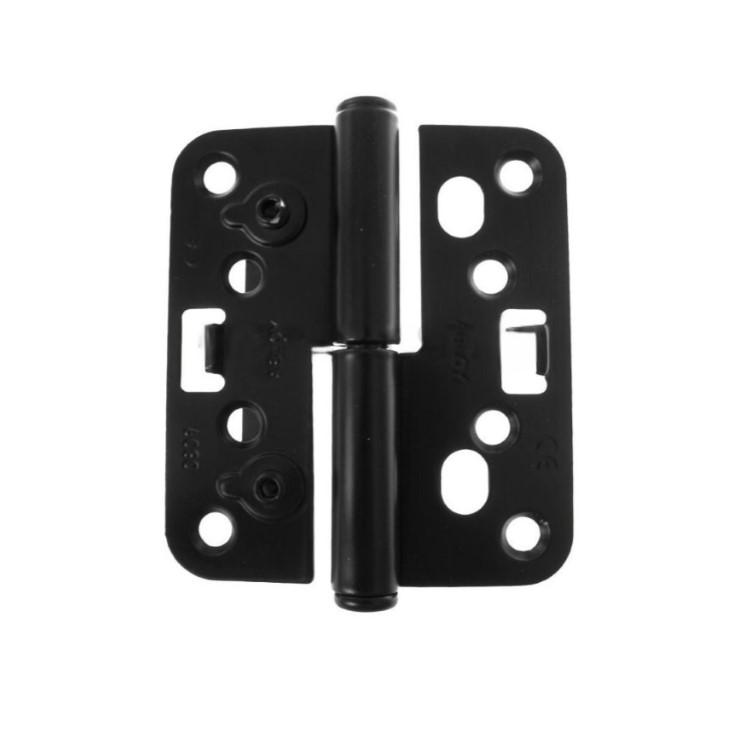

Adjustable removable hinge
The hinge is side and height-adjustable.
Suitable for public space non-rebated wooden doors.
Suitable for fire-stop doors.
Tested: 200,000 closing cycles.
| Weight, kg | 0.350000 |
|---|---|
| Country of origin | Sweden |
| Model Name | N3248-110 |
| Hinge grade - EN1935 | Grade 4 |
| Brand | ASSA ABLOY |
| Material | Stainless Steel |
| Hinge type | Butt hinges |
| Door material | Wooden doors |
| Door weight | 120 KG |
| Fire-resistance | Suitable for fire-resistance doors |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 110 x 100 x 5 |
