Concealed door closer Meroni DC 550

Add to Wish List
€100.80

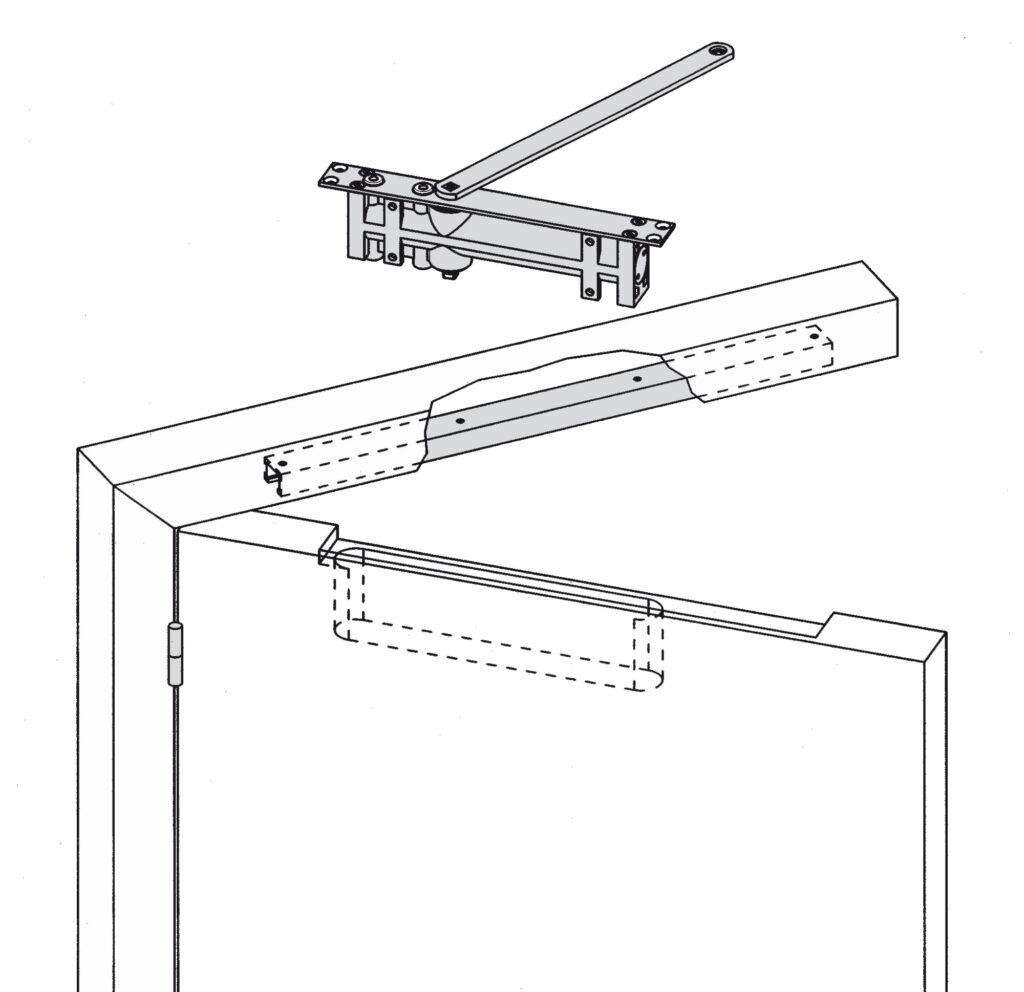

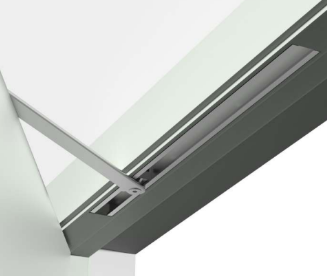

The DC550 model is a concealed overhead door closer with variable force by spring (EN 2-3-4) available in the standard version, with sliding arm and adjustable stop. Available in silver finish, can be installed on right-hand or left-hand opening doors.

In stock
SKU
MerDC550

Adjustable closing power: EN 2-3-4

Maximum door width:

EN 2 mm 850
EN 3 mm 950
EN 4 mm 1100

Door weight:

EN 2 Kg 25 - 45
EN 3 Kg 45 - 60
EN 4 Kg 60 - 80

Only for 90° opening

EN 5 mm 1250
EN 5 Kg 80 - 100

DIN right, DIN left

Adjustable closing and final latch speed by means of 2 independent valves:

120° - 10°
10° - 0°

Hold open Adjustable

Standard finishes: silver, black

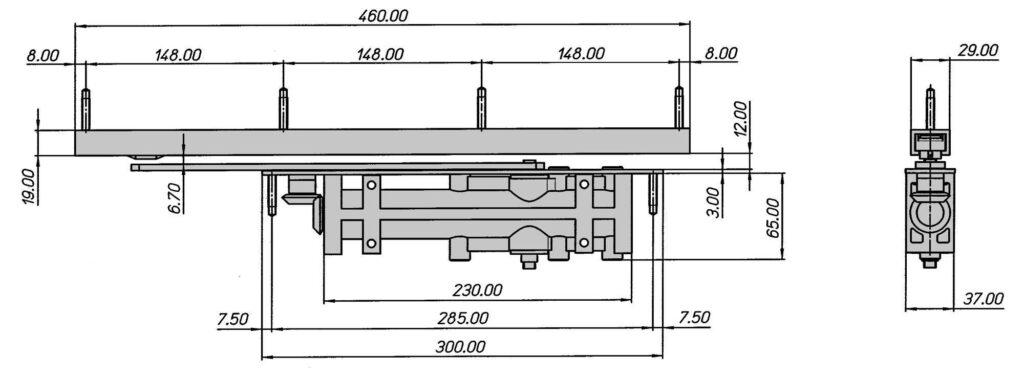

Dimensions

Body Length mm 255
Plate Length mm 300
Width mm 37
Heigth mm 75

Weight (package included) Kg 2,2

More Information
Weight, kg 2.200000
Country of origin Italy
Finish Silver
Model Name DC 550
Material Steel
Brand Meroni
Closer type Concealed door closers
Fire-resistance Not suitable for fire-resistant doors
Quantity 1
Manufacturer warranty 24 months
Package sizes, mm 300 x 40 x 80

Concealed door closer Meroni DC 550

€100.80
