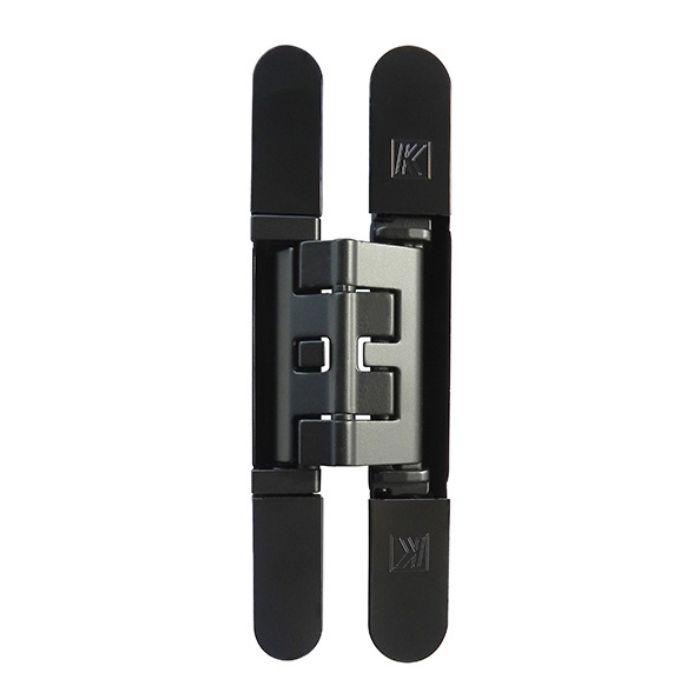

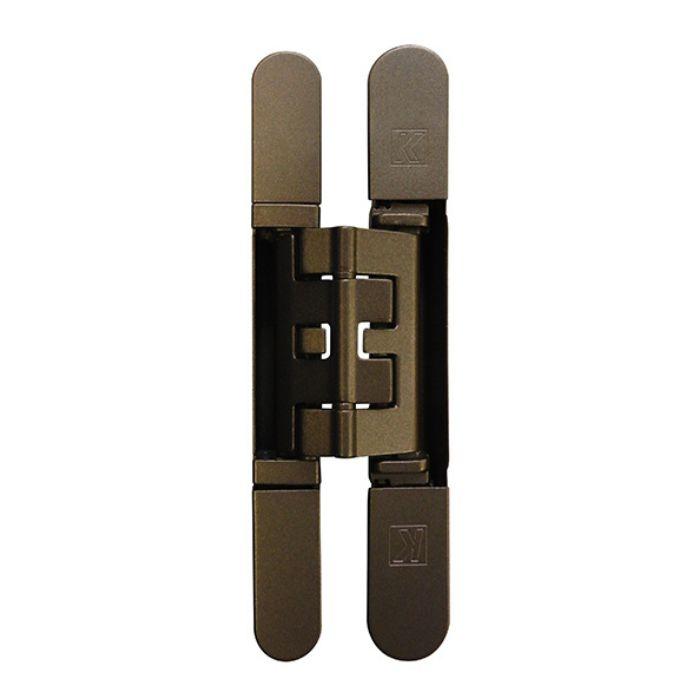

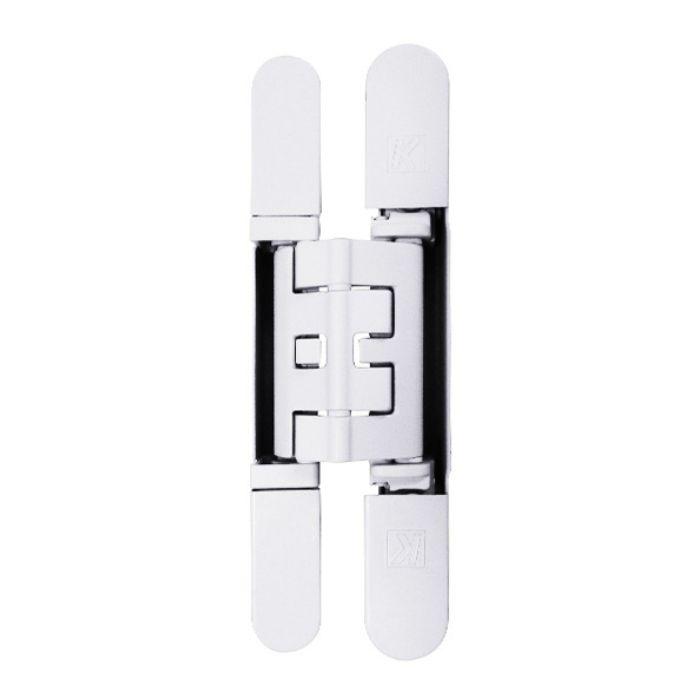

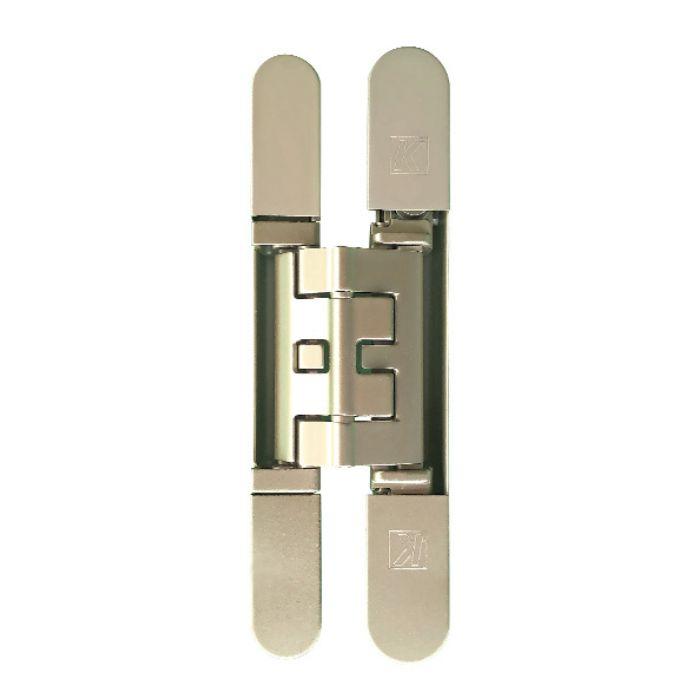

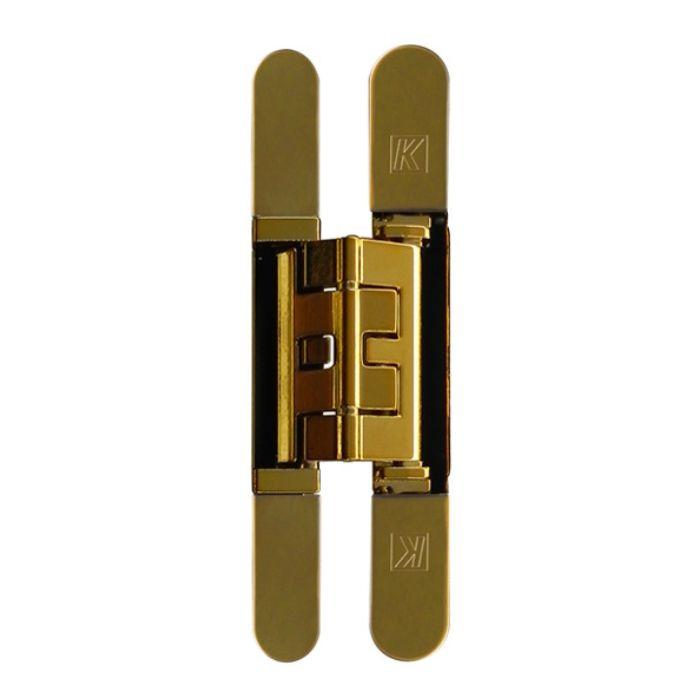

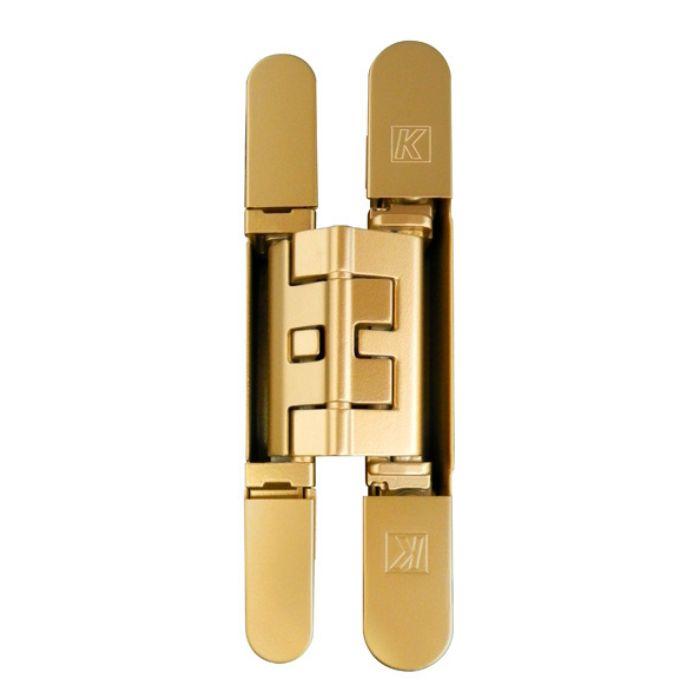

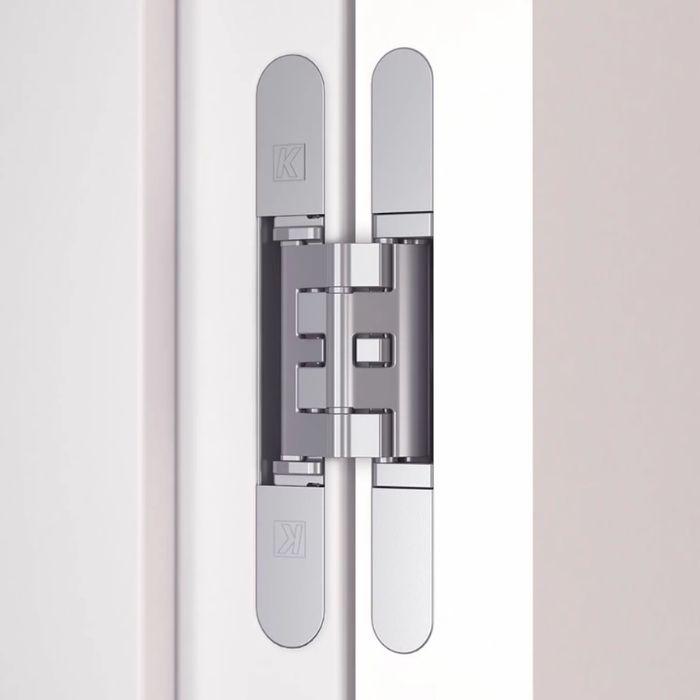

A concealed hinge made of high resistance steel and ZAMAK alloy for flush doors and/or any possible rebate application, for frames made of wood, steel and aluminium.

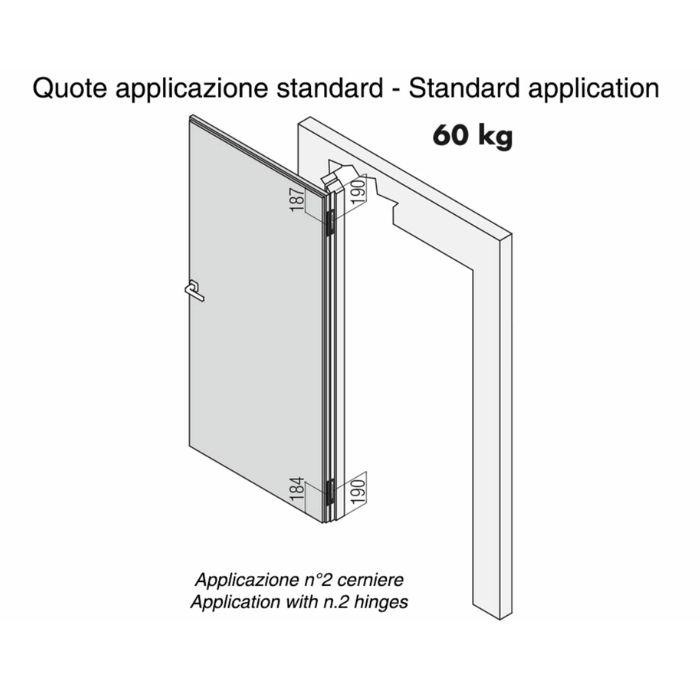

60kg capacity with 2 hinges. Opening angle up to 180°, "slim" solution with a minimum door thickness of 25mm, anti-wear bushings that don't need lubrication / maintenance.
Hinge can be adjusted in a regular way, all the adjustments are independent, horizontal adjustment is assisted and self-supporting.
Adjustments: horizontal + /- 3,0 mm, vertical + /- 3,0 mm, depth +/- 1,5mm.
Fire rated 30 minutes
| Weight, kg | 0.400000 |
|---|---|
| Country of origin | Italy |
| Model Name | K2460 CM |
| Hinge grade - EN1935 | Grade 2 |
| Brand | KRONA KOBLENZ |
| Material | Zamak, Steel |
| Hinge type | Concealed hinges |
| Door material | Wooden doors |

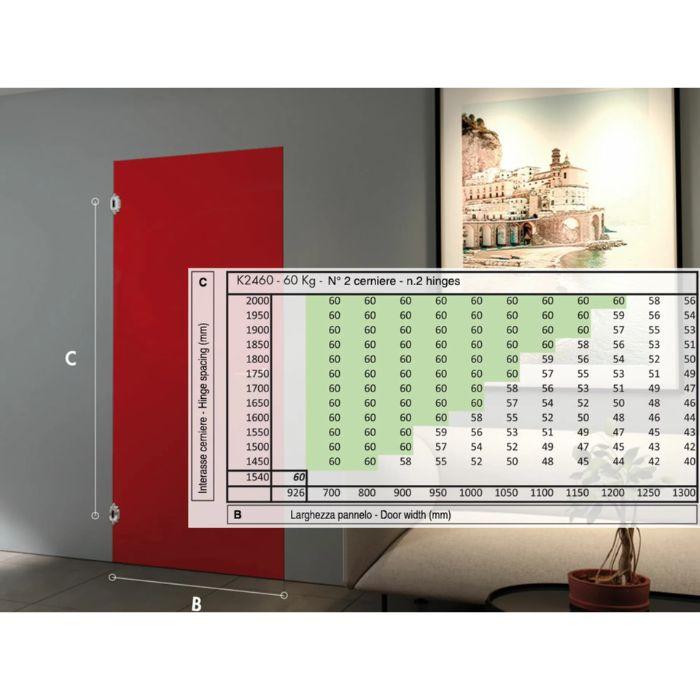

| Door weight | 60 KG |
| Fire-resistance | Suitable for fire-resistance doors |
| Manufacturer warranty | 24 months |

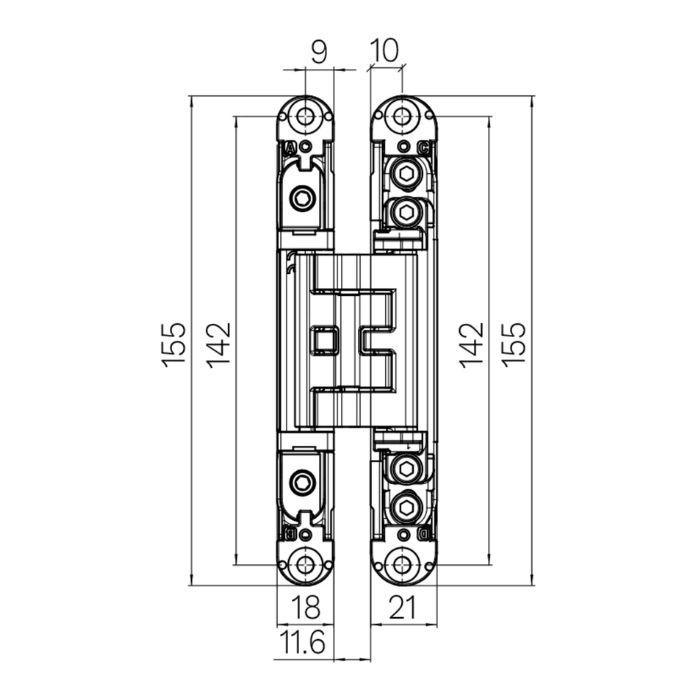

| Package sizes, mm | 155 x 40 x 30 |
