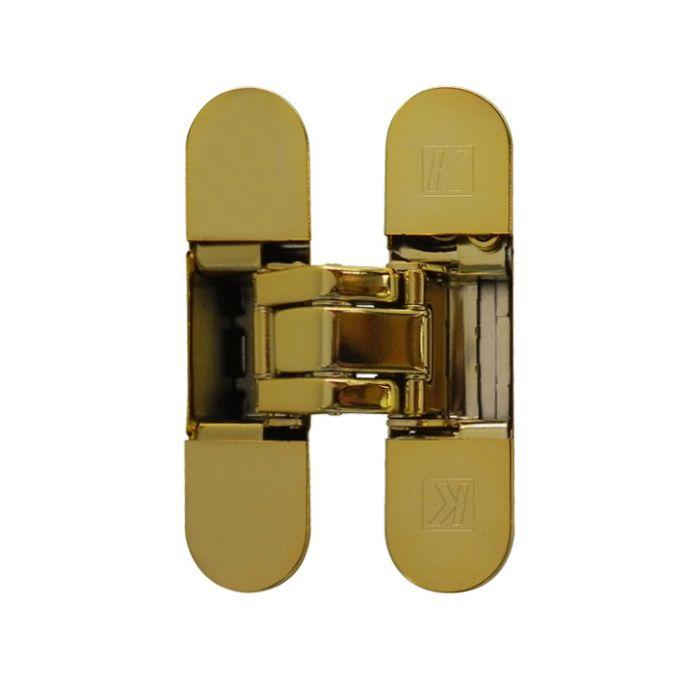

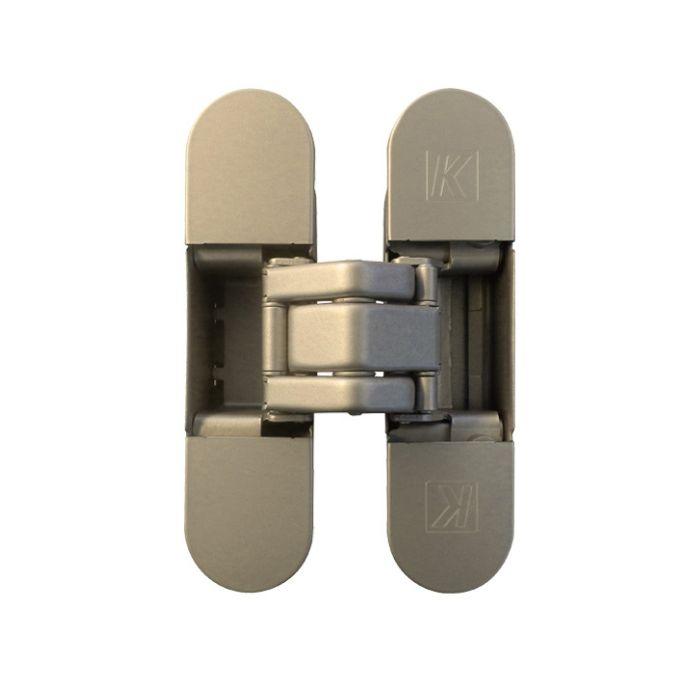

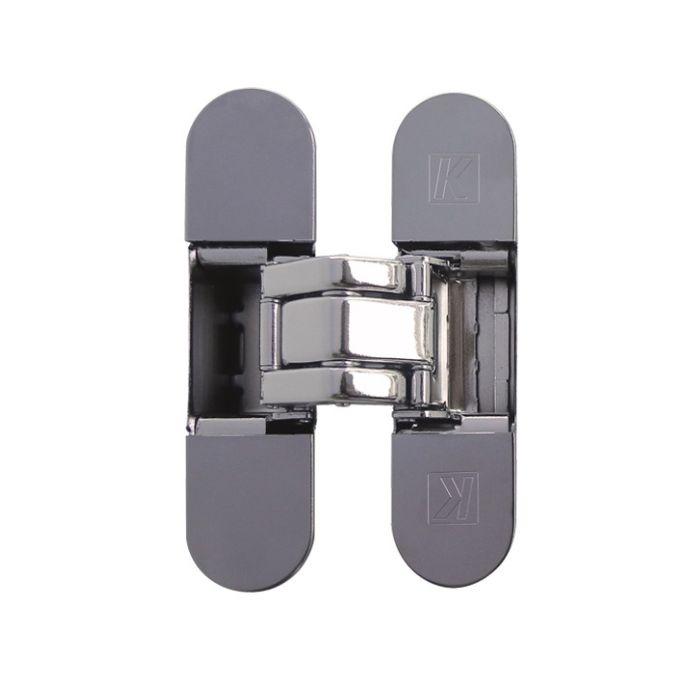

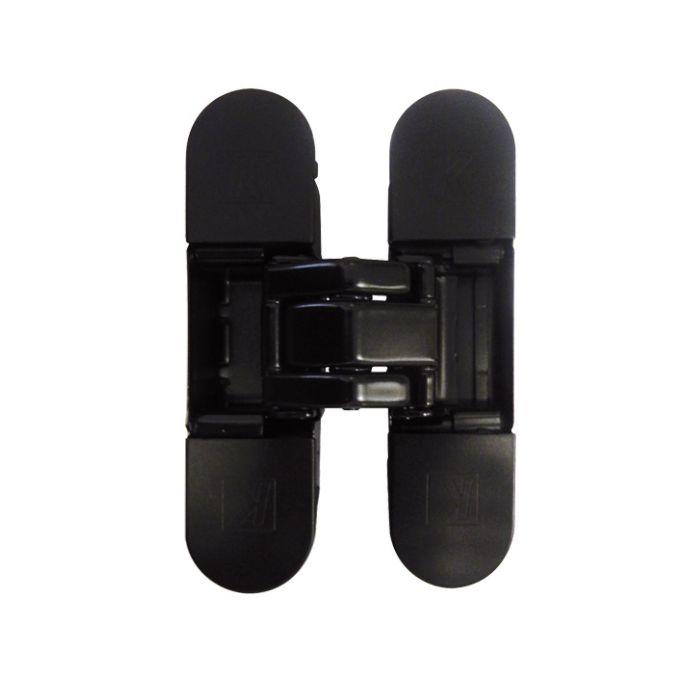

A concealed hinge made of highly resistant steel for flush doors with wooden, steel and aluminium frame.
Load capacity up to 60kg with 2 hinges fitted. 180 degree opening angle with the minimum door thickness of 38mm. Wear-resistant bushing, lubrication/maintenance not required.
3D-adjustable, all adjustments are independent, tool aided and self loading.
Adjustments: horizontal +/- 1,0mm, vertical =+/-3,0mm, depth +/- 1,0mm
Cover caps are supplied with this product
FIRE RATED 30 Minutes
| Weight, kg | 0.322000 |
|---|---|
| Country of origin | Italy |
| Model Name | K8000 |
| Brand | KRONA KOBLENZ |
| Material | Steel |
| Hinge type | Concealed hinges |
| Door material | Wooden doors |
| Fire-resistance | For fire-resistance doors |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 120 x 60 x 30 |
