Voltage: 10/24V AC/DC
Purpose: Fire resistant doors
Adjustable keeper (FF, FaFix®): Yes
Fail locked: Yes
Break-in resistance: 9000 N

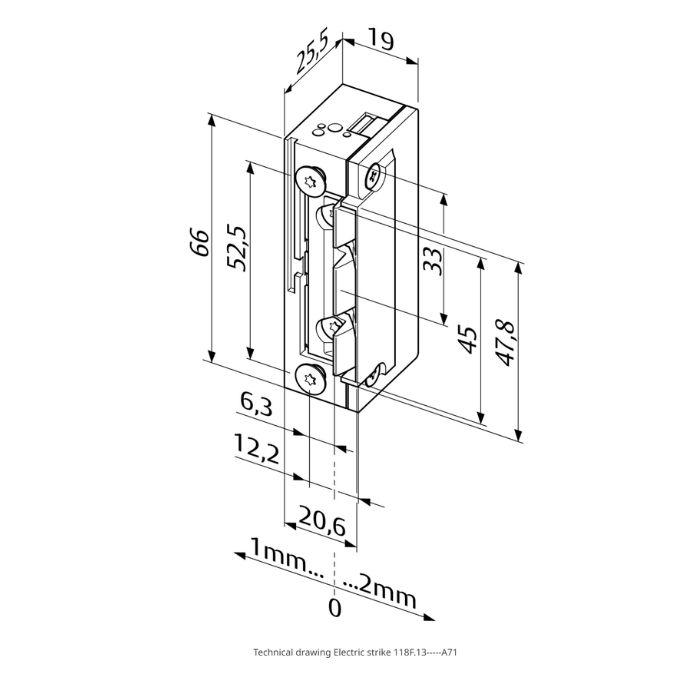

Height mm: 66
Width mm: 20.1
Depth mm: 25.5
Operating temperature range: -15 °C to +40 ºC
| Weight, kg | 0.170000 |
|---|---|
| Country of origin | Germany |
| Model Name | 118F.13-----A71 |
| Material | Steel |
| Brand | EFF EFF ASSA ABLOY |
| Type of electric strike | Fire and smoke protection |
| Electric strike configuration | Fail-secure - Normal closed |
| Fire-resistance | Suitable for fire-resistance doors |
| Electric strike DIN direction | Universal |
| Operating temperature range | -15 °C to +40 °C |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 95 x 35 x 25 |
