Door closer Eco Schulte TS-41 NEWTON

ECO Newton TS-41

Closing force 1–4 according to EN - CS, LS, ÖD (fixed)

Closing force size 1–4, tested acc. to EN 1154 (for door widths up to 1,100 mm), continuously adjustable. Latching speed and closing speed freely adjustable at the side.

Constant back-check. Same model for DIN L/R. Depth only 41 mm. Weight: 1,380 g. Max. door opening angle: 180 °

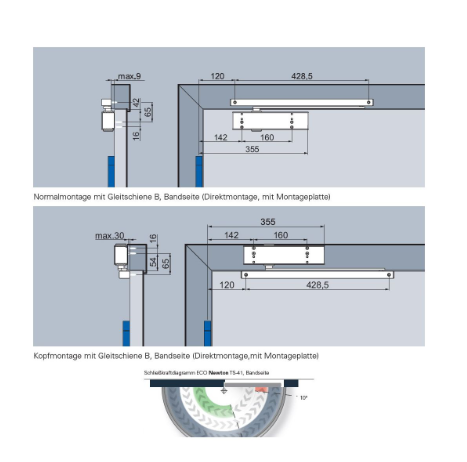

The ECO Newton door closer portfolio covers all door dimensions with only two basic units. One model for all four mounting types

Applications for the ECO Newton TS-41

The ECO Newton TS-41 is designed for light to medium functional doors (EN 1154 size 4) and is used wherever elegant design, functionality, ease of opening and cost-conscious construction are required. Closing speed and latching speed can be freely adjusted, the back-check (from 70° door opening) is already pre-installed in every closer.

ECO Newton TS-41 achieves a high degree of efficiency, which strikes the ideal balance between opening and closing. The forces which arise when a door is opened are reduced to a minimum, without any compromises on the reliability of the door closing. For the user, this means that distinctly less torque is required to open a door in comparison to other similar door closers. This makes the ECO Newton TS-41 the perfect problem solver for standard and special-function doors, especially for clinics, care homes, kindergartens and schools.

The ECO Newton TS-41 complies with DIN 18040 (construction of accessible buildings with requirements for highly efficient smooth-running doors). The maximum opening torque at closing force EN 4 is only about 37 N m (the DIN 18040 standard requires a maximum of 47 N m).

It is recommended to use door closers with continuously adjustable closing force.
So that people with restricted mobility have enough time to pass safely through the door, delayed action in the door closer may be necessary.
For fire and smoke control doors, hold-open systems (e.g. holding magnets or a free swing door closer) should be used.
