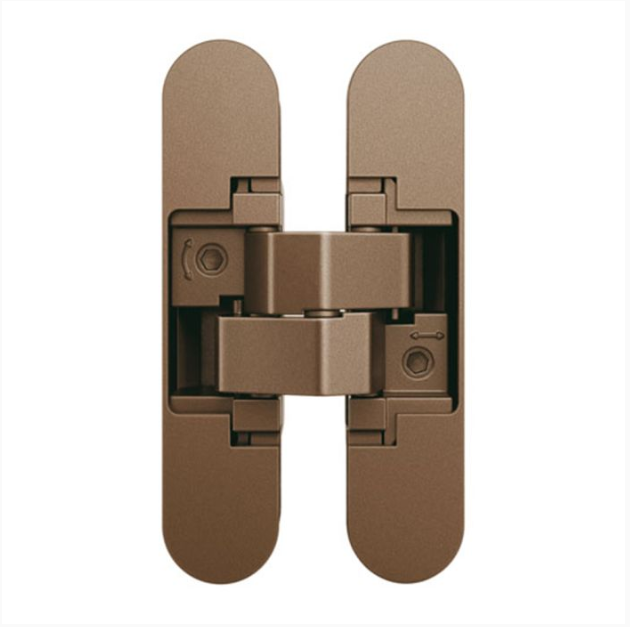

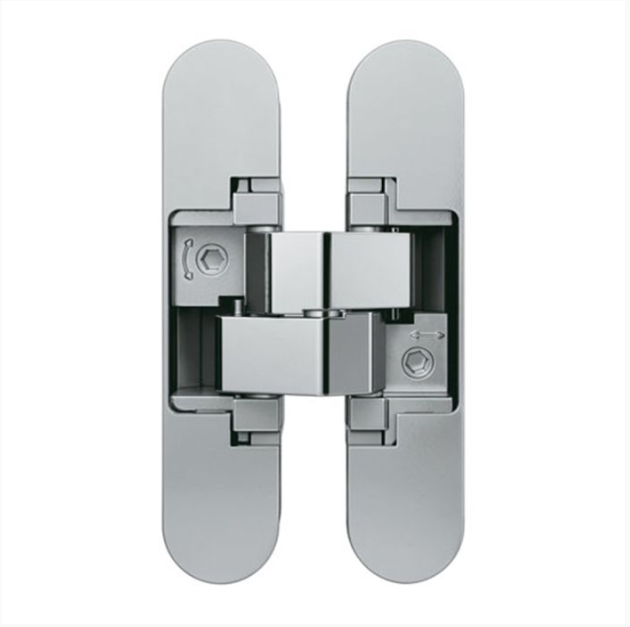

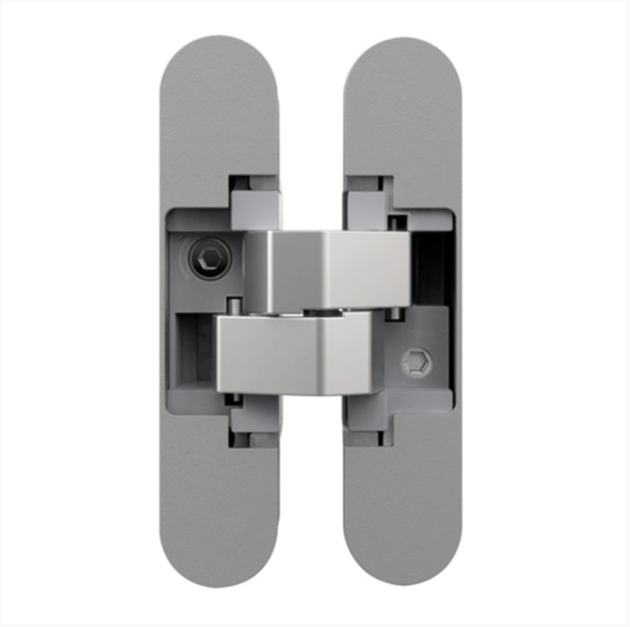

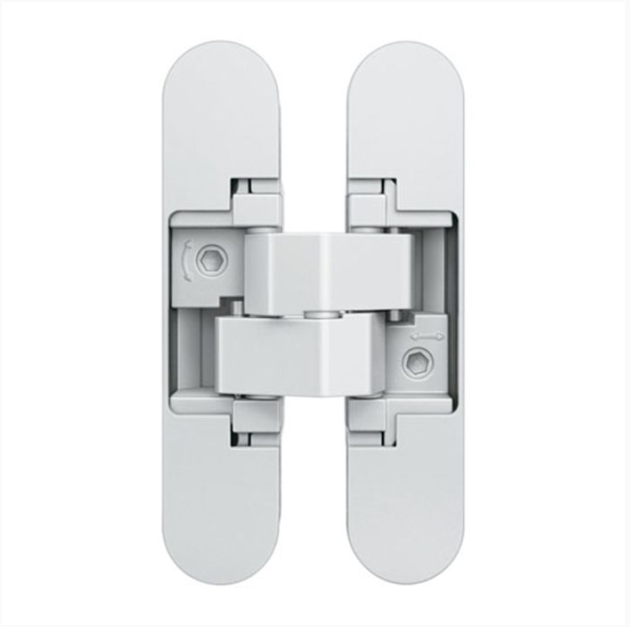

Anselmi AN 150 3D (521) Adjustable Concealed Hinges
Concealed heavy duty hinge rebated, flush-faced quality timber doors with 21 mm reduced hinge frame part
Maximum adjusted door weight 40 kg
Load capacity refers to door H2100 x W900 mm mounted with 2 hinges
3D adjustment (side +/- 1,5 mm, height +/- 2,5 mm, compression +/- 1,0 mm)
Opening angle 180 degree
Fixing screws included
Material is Zamac / Acetal
| Weight, kg | 0.350000 |
|---|---|
| Country of origin | Italy |
| Model Name | AN 150 3D (521) |
| Hinge grade - EN1935 | Not certified |
| Brand | ANSELMI SIMONSWERK GROUP |
| Material | Zamak |
| Hinge type | Concealed hinges |
| Door material | Wooden doors |
| Door weight | 40 KG |
| Fire-resistance | Not suitable for fire-resistant doors |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 110 x 61 x 40 |
